Mica in Sheets: Phlogopite Mica vs Muscovite Mica?

Published time:

2025-08-07 16:36

Source:

Brief Overview

Mica sheets, as a key insulating material, play an irreplaceable role in numerous industrial fields such as power, electronics, and metallurgy. Phlogopite mica sheets and muscovite mica sheets are the two most widely used mica sheet products on the market. Both derived from natural mica minerals, they exhibit distinct performance characteristics due to differences in mineral composition and structure. For scenarios requiring reliable insulation in high-temperature environments, correctly distinguishing their properties is crucial. This article will compare them from dimensions such as core differences, precautions, and characteristic analysis, providing professional selection references for industry practitioners, while combining the product advantages of Yuefeng Mica to facilitate accurate material selection.

Key Takeaways: Phlogopite Mica Sheets vs Muscovite Mica Sheets

Comparison Item	Phlogopite Mica Sheets	Muscovite Mica Sheets
Mineral Composition	Potassium magnesium aluminum silicate (with magnesium)	Potassium aluminum silicate (high aluminum, low magnesium)
Temperature Resistance Limit	Long-term use up to 900°C, short-term peak 1000°C	Long-term use up to 500°C, prone to degradation at higher temperatures
Electrical Insulation Performance	Excellent stability at high temperatures, low dielectric loss	Superior insulation at room temperature, high dielectric strength
Chemical Resistance	Strong alkali and moisture resistance	Sensitive to strong acids and alkalis, prone to corrosion
Physical Properties	Good toughness, moderate impact resistance	High rigidity, easy to cut and process, high transparency
Typical Application Scenarios	Insulation for industrial furnaces, boilers, high-temperature motors	Insulation for transformers, capacitors, electronic components
Cost Level	Higher (limited natural reserves)	Lower (abundant resources, low processing difficulty)

Precautions

Temperature Adaptation Red Line Cannot Be Crossed: Although phlogopite mica sheets can withstand high temperatures up to 900°C, structural aging may still occur in environments continuously exceeding 950°C; if muscovite mica sheets are exposed to temperatures above 500°C for a long time, they will lose crystalline water, leading to a sharp drop in insulation performance and even crisp fragmentation. It is crucial to strictly follow the temperature resistance limit.

Environmental Compatibility Needs Advance Evaluation: In industrial environments with humidity or alkali mist (such as chemical workshops, sewage treatment equipment), phlogopite mica sheets should be preferred; in dry, non-corrosive electronic workshops, muscovite mica sheets are more cost-effective.

Processing and Installation Specifications: Phlogopite mica sheets have good toughness but moderate folding resistance. Special tools should be used for cutting to avoid edge cracking; muscovite mica sheets are highly brittle, requiring shockproof protection during transportation and installation to prevent severe impact.

Quality Traceability Control: When selecting mica sheets, confirm the purity of raw materials. Excessive impurity content will significantly reduce insulation performance. Yuefeng Mica uses natural mica minerals with a purity of over 99% for processing, and each batch of products provides quality inspection reports.

Tips

Core Selection Logic: Take the working environment temperature as the primary judgment standard - phlogopite mica sheets must be selected when the temperature is ≥500°C; when the temperature is <500°C, muscovite mica sheets can be chosen according to insulation precision and cost budget.

Performance Superposition Requirements: If both high-temperature resistance and high dielectric strength are required (such as insulation for new energy vehicle motors), Yuefeng Mica's phlogopite composite sheets can be considered, which achieve performance complementation through process optimization.

Long-term Use Suggestions: In scenarios with periodic high-temperature changes (such as intermittently operating furnaces), the thermal stability of phlogopite mica sheets can better ensure equipment life, so priority is recommended.

Compliance Check: For electrical equipment applications, confirm that products meet international standards such as IEC 60372 (Specification for Mica Materials). All series of Yuefeng Mica products have passed CE and UL certifications.

Characteristics

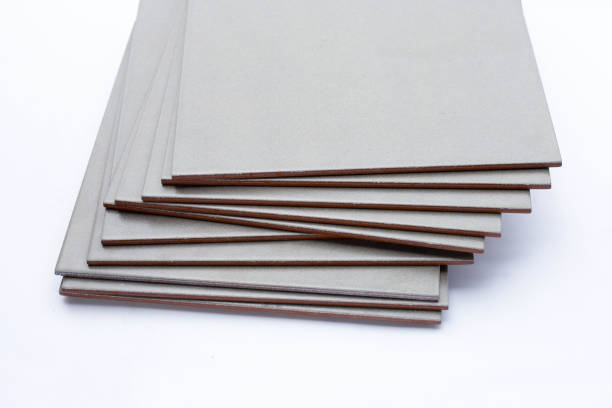

Phlogopite Mica Sheets

The core characteristics of phlogopite mica sheets stem from their magnesium-containing crystal structure: in high-temperature environments, magnesium can stabilize the crystal framework and reduce structural looseness caused by thermal vibration. Thus, they can maintain insulation performance for a long time at 900°C (volume resistivity >10¹⁴Ω·cm). Their natural brown or bronze appearance comes from trace doping of iron elements, which does not affect insulation but makes their light transmittance lower than that of muscovite.

In terms of mechanical properties, the tensile strength of phlogopite mica sheets is about 160-200MPa, which can withstand a certain degree of deformation without breaking, making them suitable for high-temperature sealing scenarios requiring slight buffering. In addition, their water absorption rate is <0.5%, and after being placed in an environment with 90% humidity for 30 days, the insulation resistance drop rate is <10%, showing excellent moisture resistance.

Muscovite Mica Sheets

Due to its high-aluminum and low-magnesium composition, muscovite mica sheets have more prominent insulation performance at room temperature: dielectric strength reaches 15-20kV/mm, and dielectric constant is stable at 5-7 (at 1MHz frequency), far exceeding phlogopite mica sheets' 10-15kV/mm and 6-8. The dense arrangement of aluminum-oxygen layers in its crystal structure endows it with high rigidity (hardness 2.5-3 Mohs) and good light transmittance (light transmittance up to 70%), facilitating processing into ultra-thin sheets of 0.01-0.1mm.

In medium and low-temperature environments (<300°C), muscovite mica sheets have good chemical stability, and their oil resistance and solvent resistance are better than phlogopite. However, when the temperature exceeds 500°C, hydroxyl groups (-OH) in the crystal will gradually detach, leading to structural collapse, and insulation performance can drop by more than 50% within 24 hours.

Advantages and Disadvantages

Phlogopite Mica Sheets

Advantages:

Excellent high-temperature resistance, one of the few natural insulating materials that can work stably in 900°C environments;

Outstanding alkali resistance and moisture resistance, adapting to complex industrial environments;

Better toughness, with higher installation fault tolerance than muscovite mica sheets;

Strong compatibility with high-temperature adhesives, can be made into high-temperature resistant mica tapes for motor windings.

Disadvantages:

Higher cost, about 1.5-2 times that of muscovite mica sheets;

Dielectric performance at room temperature is slightly inferior to muscovite;

Limited natural reserves, some high-end products rely on imported mica mines.

Muscovite Mica Sheets

Advantages:

Top insulation performance at room temperature, with leading dielectric strength and stability in the industry;

Abundant resources and affordable price, suitable for large-scale applications;

High rigidity and easy processing, can be made into precision thin sheets or special-shaped parts;

Good light transmittance, suitable for insulation scenarios requiring observation (such as instrument windows).

Disadvantages:

Low temperature resistance limit, unable to be used for a long time in environments above 500°C;

High brittleness, requiring extra caution during transportation and installation;

Sensitive to corrosive environments, with limited applicable scenarios.

Frequently Asked Questions

1. What is the difference in service life between phlogopite and muscovite mica sheets?

In rated temperature and non-corrosive environments, the service life of phlogopite mica sheets can reach 10-15 years; the service life of muscovite mica sheets in <300°C environments is about 8-12 years, but it will be shortened to 3-5 years at 400-500°C. Factors such as environmental humidity and vibration frequency also affect the service life. It is recommended to consult Yuefeng Mica's technical team based on the usage scenario.

2. How to quickly distinguish the two types of mica sheets by appearance?

Phlogopite mica sheets are mostly brown, bronze, or yellowish, with soft luster on the section; muscovite mica sheets are mainly transparent, light brown, or silvery white, with glass luster on the section and significantly better light transmittance. However, professional testing is ultimately required for confirmation to avoid interference from impurities in natural mica.

3. What processing technology does Yuefeng Mica use for phlogopite mica sheets?

Yuefeng Mica adopts the "water separation purification + constant temperature pressing" process: first, remove impurities such as quartz and feldspar from mica ore through multi-stage hydraulic separation, then press and form in a 200°C constant temperature environment to ensure uniform density of mica sheets (≥2.7g/cm³), reduce bubbles and delamination, and improve high-temperature stability.

4. Can muscovite mica sheets replace phlogopite mica sheets for high-temperature equipment insulation?

Absolutely not recommended. Muscovite mica sheets will degrade rapidly above 500°C, leading to insulation failure, which may cause safety accidents such as equipment short circuits and fires. Even for short-term emergency use, the temperature must be strictly controlled below 450°C, and the replacement cycle should be shortened.
